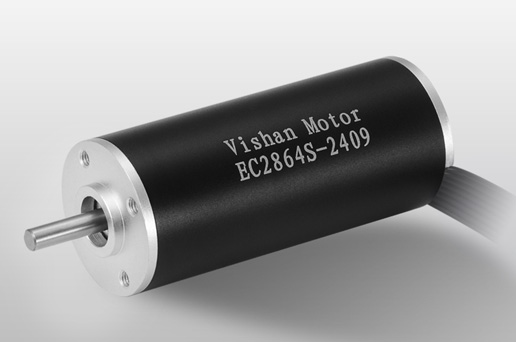

EC2864, 28mm*64mm
Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products.
Configuration:
  • With or without Hall sensor
  • Performance: Customized in the continuous operating range
  • Ball bearing: Preload
  • Flange: Standard frange front&back/customize the frange
  • Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
  • Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
  • Connector: JST/MOLEX/TE
Applications:
  • Power Tools
  • Pumps
  • Robot
  • Fan&Blower
  • Medical Equipment
