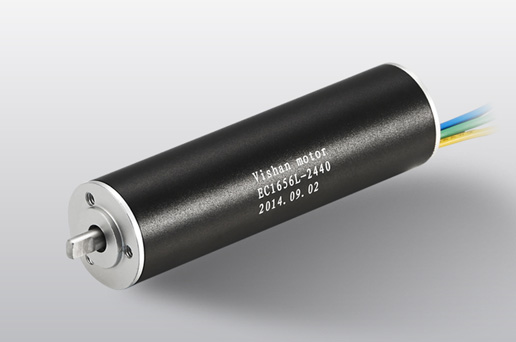

ECH1656, 16mm*56mm
Vishan high speed versions can both supply with or without sensor versions and accept flexible performance and dimension customization. The slotless desion can eliminate the cogging torque perfectly and delivery the fast response, high performance, also we used all machined aluminum parts to get lower temperature operation. the grease which the ball bearing inside is also a very important point, experience and professional calculation and selection will help to reduce the noise level and vibration.
Configuration:
  • Performance: Customized in the continuous operating range
  • Ball bearing: Preload
  • Flange: Standard frange front&back/customize the frange
  • Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
  • Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
  • Connector: JST/MOLEX/TE
Application:
  • Fan&Blower
  • Medical equipment
  • Dental Handpieces
  • Polishing Machine

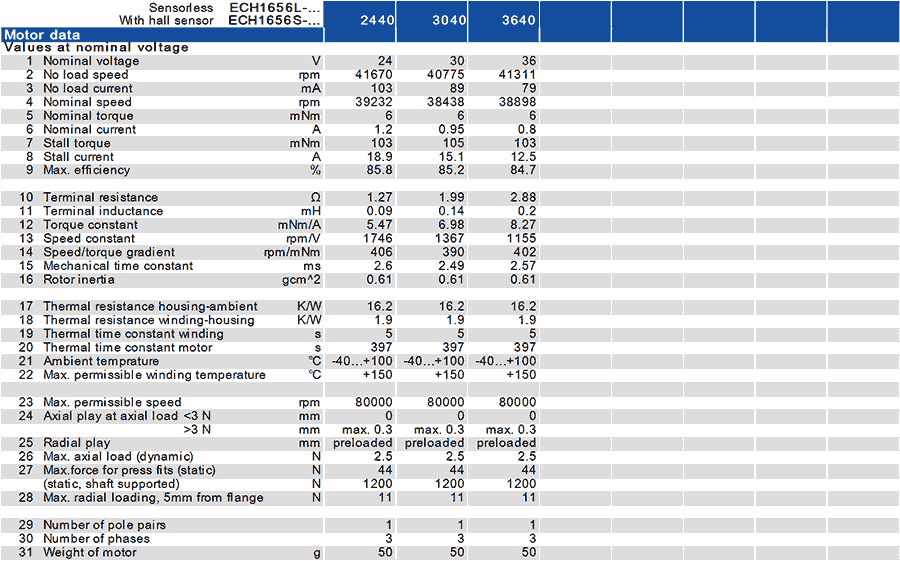

  • SPECIFICATIONS + DETAIL

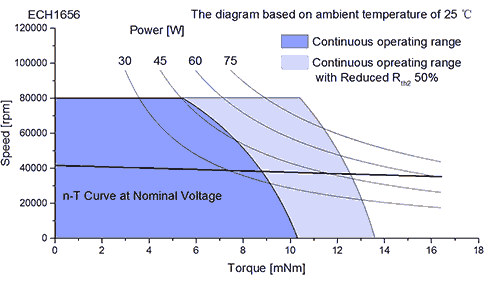

  • OPERATING RANGE

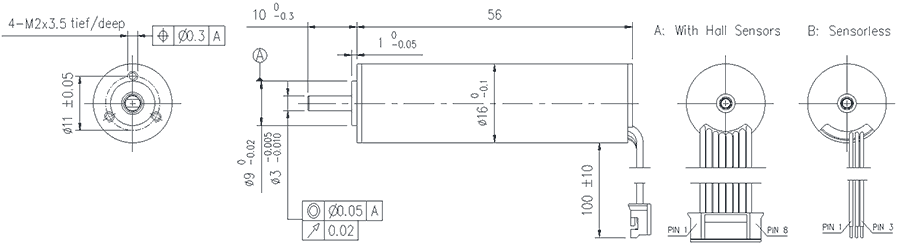

  • DRAWING
