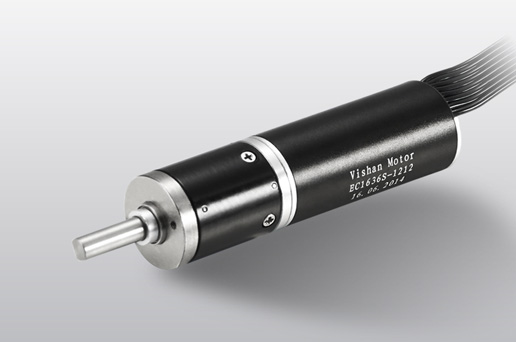

ECG16, Φ16mm
The high precision planetary gearheads are used to supply the continuous big torque under lower rated speed , The noise level and reliable quality are also an important point of calculation. Both of the motors and the gearheads can be accept flexible customization.
Configuration:
  • Pinion: Metal/Plastic
  • Ball bearing: Preload
  • Flange: Standard frange front&back/customize the frange
  • Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
  • Leadwire: PVC/Silicon/Teflon/UL No/Dimensions/length
  • Connector: JST/MOLEX/TE
Applications:
  • Robots
  • Pumps
  • Industry Control
  • Medical Equipment
  • Power tools

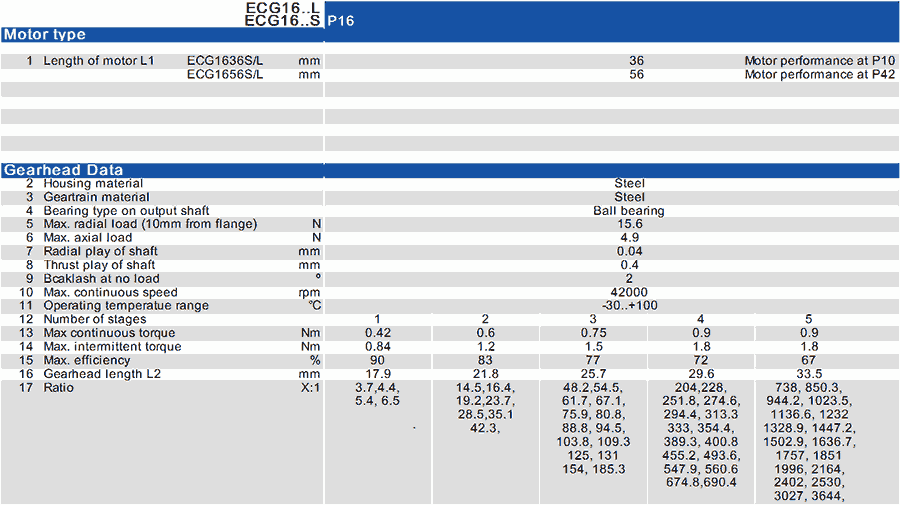

  • SPECIFICATIONS + DETAIL

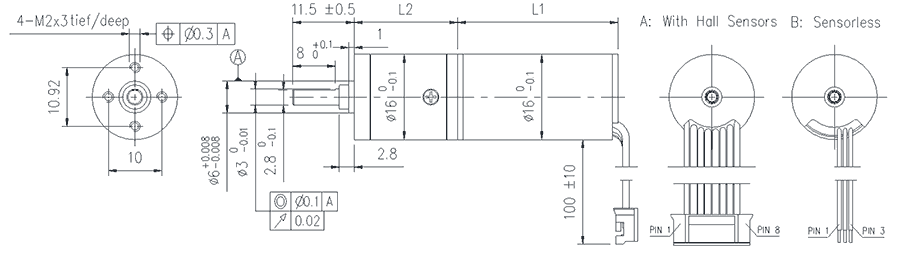

  • DRAWING
