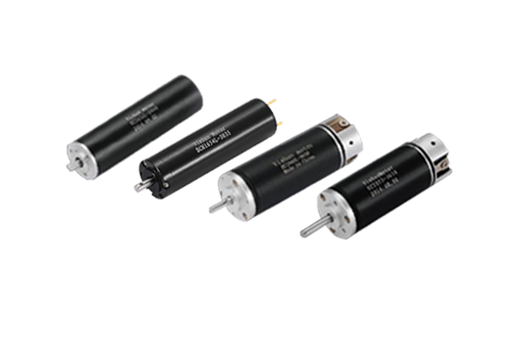

ECH Series

For some quit high level and special requirements, motor have to find the balance of the efficiency, power output, temperature, noise and vibration. it's really a big challange. Fortunately Vishan ECH series fulfill such applications very well, benefit from the cylindrical coil design, there is almost no cogging torque with extreme fast response.

Characteristics:

  • High power and efficiency at high speeds
  • Designs can reach mechanical powers such as 50W continuously at 50,000 rpm
  • Damping system resulting in silent /low noise - vibration
  • Downsize design but big power output
  • Extreme torque at low speed
  • High torque density
  • Lower speed drop under load
SPECIFICATIONS + DETAIL
Model Diameter (mm) Max continuous mechanical power (@ 25°C) (w) Max Continuous Torque (mNm) Max motor speed (rpm) Weight (g) Length (mm) Specification CAD 3D CAD
ECH1636, 16mm*36mm 16 25 7 60000 32 36
ECH1644, 16mm*44mm 16 30 11 60000 43 44
ECH1656, 16mm*56mm 16 35 12 60000 50 56
ECH2040, 20mm*40mm 20 30 8 60000 53 40
ECH2053L,20mm*53mm 20 40 14 60000 63 53
ECH2057L,20mm*57mm 20 70 20 60000 69 57
