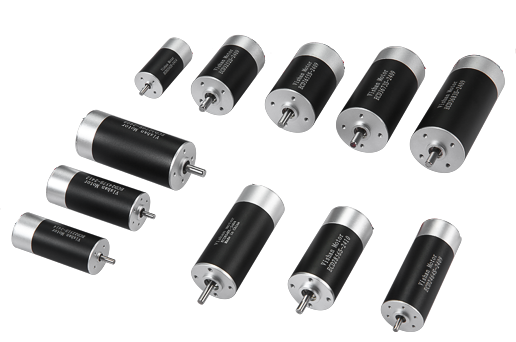

ECD Series
Vishan motor continues to keep the innovation and development for the slotless BLDC motor and control technology, in order to push the curve of high performance, With exceptional torque and speed, higher efficiency and package sizes suited to meet your needs.Benefit by the special cylindrical coil design, these Slotless brushless DC motors offer excellent speed and position control, long life, and high torque density.
Our ECD series are developed extraordianry for the application which required integrative solution(motor+controller) with smaller size and easier to operate, flexible customization is also convenient for brush motor replacement.
Characteristics:
  • Wide size range, Φ22mm to Φ36mm
  • High quality BLDC motor controller inside
  • Flexible function customization
  • Long life time
  • High motion efficienty
  • Low noise level
SPECIFICATIONS + DETAIL
Model Diameter (mm) Max continuous mechanical power (@ 25°C) (w) Max Continuous Torque (mNm) Max motor speed (rpm) Weight (g) Length (mm) Specification CAD 3D CAD
ECD1228L,Φ12mm*28mm 12 2 0.5 50000 12.2 28
ECD1638L,Φ16mm*38mm 16 3 1.5 35000 27 38
ECD2238S,Φ22mm*38mm 22 7 6 25000 63 38
ECD2246S,Φ22mm*46mm 22 9 10 25000 79 46
ECD2452S,Φ24mm*52mm 24 10 13 15000 112 52
ECD2459S,Φ24mm*59mm 24 15 20 15000 130 59
ECD2854S,Φ28mm*54mm 28 13 18 15000 153 54
ECD2863S,Φ28mm*63mm 28 20 25 15000 188 63
ECD3270S,Φ32mm*70mm 32 25 40 12000 255 70
ECD3673S,Φ36mm*73mm 36 35 50 12000 317 73
ECD3683S,Φ36mm*83mm 36 45 100 12000 366 83
